SmartDock

SmartDock Replacement Parts Now Available at BuyIMMI.com
Springs, Valve Holders, Buckle Keepers, and more!

No Straps. No Levers. No Hassle.

No Straps. No Levers. No Hassle.
No Straps. No Levers. No Hassle.
No Straps. No Levers. No Hassle.
No Straps. No Levers. No Hassle.

No Straps. No Levers. No Hassle.

Firefighters should fight fires instead of their gear. With SmartDock, there are no cords or levers to slow them down. Simply bend at the waist to release the tank then stand up to exit the apparatus. In the event of a crash, SmartDock locks in place to keep the tank from becoming a projectile. A single model fits nearly all SCBAs, and SmartDock quickly retrofits to a wide variety of seats.

SmartDock is available for all major North American OEMs. A European model is also available.



SmartDock Features

Claw
1

Claw

Clamps down in an accident to keep the tank from becoming a projectile
Height Adjustment Knob
2

Height Adjustment Knob

To adjust for variations in tank size
Two Bolt Installation
3

Two Bolt Installation

For fast retrofit, bracket and mounting hardware included
Retaining Tabs
4

Retaining Tabs

Fit a wide variety of SCBA bottles
1

Claw

Clamps down in an accident to keep the tank from becoming a projectile
Claw
2

Height Adjustment Knob

To adjust for variations in tank size
Height Adjustment Knob
3

Two Bolt Installation

For fast retrofit, bracket and mounting hardware included
Two Bolt Installation
4

Retaining Tabs

Fit a wide variety of SCBA bottles
Retaining Tabs

Safety Benefits

  • With no levers or cords, SmartDock saves firefighters precious seconds.
  • In an accident, the top claw clamps down to keep the SCBA bottle from becoming a projectile.
  • CAPE tested to meet or exceed applicable safety standards.

SmartDock

Check out SmartDock, the only hands-free SCBA holder for fire apparatus.

Authorized SmartDock Dealers

View our authorized SmartDock dealers.

Related Industries

SmartDock FAQs

Function

A: SmartDock is the first completely hands-free SCBA holder for fire apparatus. The system provides single-motion insertion and extraction of the SCBA, holds the cylinder securely in place while in transit, and releases using no straps or levers. In the event of a crash, the inertial locking feature prevents it from becoming a projectile.

A: Hands-free release of SmartDock leaves the firefighter free to reach for tools, exit the truck and get to the job at hand. Current docking stations on the market require firefighters to operate release levers and cumbersome straps that can become entangled with seat belts and firefighting gear. The innovatively designed SmartDock is a strap-free docking station that offers single-motion SCBA insertion and hands-free release when the firefighter moves forward to exit the seat.

A: SmartDock offers the convenience of single-motion insertion. Simply insert the cylinder valve into the base of SmartDock and lock it into place by pushing the cylinder into the top latching mechanism. No straps or harnesses are needed.

A: The heavy-duty top latching mechanism in the SmartDock housing grips the cylinder and holds it securely in place during transit. In the event of a collision, inertial forces cause the top latching mechanism to lock the SCBA in place, preventing it from becoming a projectile.

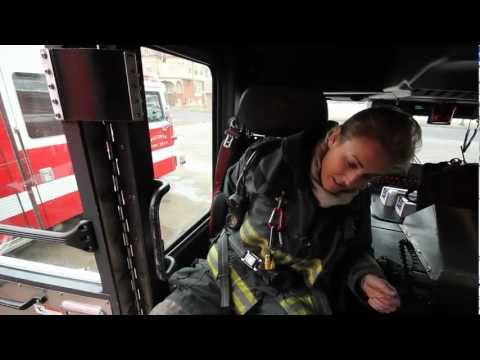

Once the SCBA is strapped on, simply bend at the waist and stand up to release the tank from the upper claw. No release levers are required. The body’s natural momentum releases the tank as the firefighter stands up to exit the vehicle.

A: SmartDock is NOT an occupant restraint system. The vehicle seat belt must be worn anytime the vehicle is moving.

A: Per NFPA 1901, SCBA seats should either have an SCBA in place or have a parade panel in place while the vehicle is in motion.

Fit

A: With its low profile, SmartDock can retrofit to a wide variety of SCBA seats on the market and is available in the aftermarket through various channels of distribution.

Model #F103150 Gen 2 SmartDock adjusts to accommodate 30-minute, 45-minute and 60-minute cylinders of various makes and models of SCBA, fitting nearly all SCBAs used in U.S. Fire departments. *Not compatible with the Scott 45/4500 “stubby” carbon cylinder or the Aluminum “Flat Top” Cylinder.

Model #F111031 Gen 2 Sutphen Short SmartDock adjusts to accommodate 30-minute and 45-minute cylinders.  *Not compatible with the 60-minute cylinder, the Scott 45/4500 “stubby” carbon cylinder or the Aluminum “Flat Top” Cylinder.

For information on SCBA compatibility, contact IMMI at 866-765-5835.

A: SmartDock is engineered to fit a wider variety of makes and models. With its low profile, it interfaces effectively with a wide variety of SCBA seats on the market. Instructions are provided to aid customers with installation to achieve the best fit for specific SCBAs and seats.

Testing

A: Yes, SmartDock has been tested at the Center for Advanced Product Evaluation (CAPE) to exceed the NFPA 1901 Standard for Automotive Fire Apparatus. When evaluated to the NFPA 1901 Standard for Automotive Fire Apparatus, SmartDock met requirements for retaining both the cylinder and the pack in dynamic testing.
